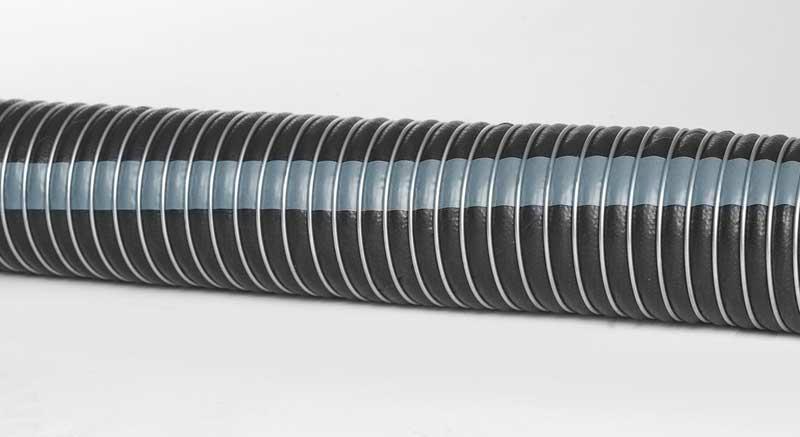

Chemical Composite Hose With PTFE Liner
PTFE chemical hoses are recommended for:
Generally in-plant transfer of more aggressive chemicals where a PTFE liner is required
Liner:
Multiple plies of woven polypropylene cloth plus several layers of polypropylene film
Reinforcing:
Multiple plies of woven polypropylene fabric with an inner Stainless Steel AISI Grd 316 wire helix & outer galvanized wire helix
Cover:
Black anti-static, reinforced PVC with blue spiral ID stripe
Recommended Temperature Range:
-10 °C to + 60 °C
Standard Length:
Up to 10 meter lengths. Longer lengths available on request.
End fitting:
Various fittings, such as threaded or unthreaded swage nipples, flanges & a wide range of quick couplings. End fittings are crimped into the hose. Composite hoses are not supplied unfitted.
Get the ideal hose for your application requirements from Truco - South Africa's largest hose manufacturer. Call Today: +27 11 762 5291
Our Composite hose range also includes:
