Victaulic HDPE Couplings
As an official African distributor of Victaulic products, Truco supplies the full range of Victaulic mechanical pipe joining systems, including its range of couplings for HDPE pipes.
These couplings are specifically used to join 2 HDPE pipes together. An HDPE pipe is a type of flexible plastic pipe used for fluid and gas transfer.
By providing a plain end solution, this range of couplings offers the easiest and fastest way to connect HDPE pipes.
Victaulic couplings for HDPE:
- Offer faster installation, design integrity & reliable operation
- Is the fastest way to join HDPE piping
- Couplings to connect HDPE to grooved & shouldered pipes
- Re-usable
HDPE couplings are ideal for:
- Mining
- Water distribution
- Water purification
- Industrial applications
- Power generation
- Municipal applications
- Agricultural use
Victaulic products have PROVEN success in the following industries:
- Mining
- Maritime
- Water Treatment
- Water distribution
- Power generation
- Fire protection
- Oil & Gas
- Automotive
- Pulp & Paper
- Heating Ventilation & Air Conditioning
- Original Equipment Manufacturers (OEM)
- Chemical & Petrochemical

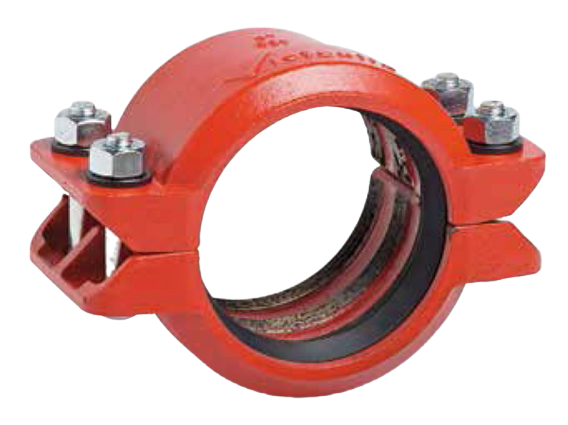

Plain End Coupling for HDPE Pipe
- Order code: Style 995N
- Coupling teeth create a 360° grip of the HDPE pipe
- Sizes ranging from 63 to 500 mm
- Pressure rating conforms to that of the rating of the HDPE pipe
HDPE-to-Shouldered Transition Coupling
- Order code: Style SC998
- A single transition for connection plain end HDPE to shouldered pipe, valves and fittings
- Hot dip galvanised for corrosive applications
- Coupling size:63 and 110 mm
- Designed to mechanically join HDPE pipe of wall thicknesses from SDR 21 to 7.4
Frequently Asked Questions
What are Victaulic HDPE couplings?
Victaulic HDPE couplings are used to join mechanical pipes to create a watertight joint.
How do you connect Victaulic HDPE couplings?
The perforated metal ring must be placed on the simple end that is connected to the flange, and then, the simple end of the conversion is fused to the simple end of the HDPE.
How are Victaulic HDPE couplings commonly joined?
The Victaulic HDPE couplings are connected using butt welding or electrofusion. Butt welding is the most common method of connection.
Where can Victaulic HDPE couplings be applied?
Victaulic HDPE couplings can be applied in the fire protection, mining, water distribution, oil & gas and maritime industries.
What is the pressure rating of HDPE pipe when using Victaulic HDPE couplings?
Victaulic HDPE couplings meet or exceed the working pressure of HDPE pipes.
